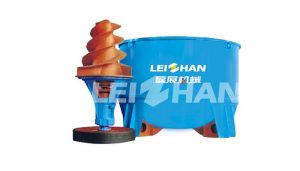

High consistency hydrapulper is used for breaking the waste paper in high consistency .The rotor combines triple-flighted and dentiform fly bar and produces intense fiber-to-fiber friction ,so it can speed defibering of the waste paper.
Application&Feature
1.Mainly used for separating waste paper and ink under high consistency in waste paper deinking process.
2.Special spiral rotor effectively promote the circulation and rollover of pulp, reinrofce friction between fibers, Finally achieve gentle pulp under hige under high consistency, impurities will not be broke in the process of fiber relief and deinking.
3.Dealing with 12%-18% high consistency pulp, effective chemical mixture and friction between fibers under hige consistency make the ink particle separate from the surface of fiber fully.
4.Compact structure, convenient operatin and maintenance.
Main Specification
| Type | ZDSG5 | ZDSG10 | ZDSG15 | ZDSG20 | ZDSG25 | ZDSG30 | ZDSG35 |
| Normal Volume(m³) | 5 | 10 | 15 | 20 | 25 | 30 | 35 |
| Consistency(%) | 10-15 | ||||||
| Production Capacity(t/d) | 20-25 | 40-50 | 60-70 | 80-100 | 130-185 | 160-225 | 185-260 |
| Motor Power(kw) | 110 | 220 | 315 | 400 | 450 | 500 | 560 |
