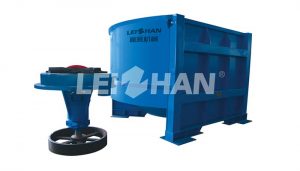

This equipment adopts D type structure, which improves the work efficiency, and it can be used for pulping waste paper & wet strength paper. D Type Hydrapulper is mainly used to crush pulp board, wastepaper, deinking, and pulp purification. Through dissociating, it can maximum make the paper’s fiber dissociating into fiber bundles or single fibers, while at the same time, it can maximize maintain impurity’s shape and strength.

Application&Feature

1.New type energy-saving VOKES rotor strengthens hydraulic circulation and fiber relirf.

2.D type structure changs slurry flow ways, make contact between pulp and rottor more quick and frequent. The mechanical action is enhanced, pulping time is shortened  so that the caoacity is improved.

3.Pulp chamber of rotor is higher than the undersuiface of pulper barrel. form a low pressure area around rottor to collect heavy impurities, reducr wear to cutterhead and sieve plate. So that can prolong the rotor and sieve plate service life.

4.Adjustable gap between rotor and sieve plate ensures the pulping effect.

5.When D type hydrapulper work with hydrapurger, drum screen, ragger, rope,cutter and grapple and form continuous pulping and deslagging system, the large light and heavy impurities in pulper can be rejected in time, which acoid pulping the impurities, reduce the following equipment burden. At the same time, it take less time to stop and clean, improve the whole system dealing capacity.

Main Specification
